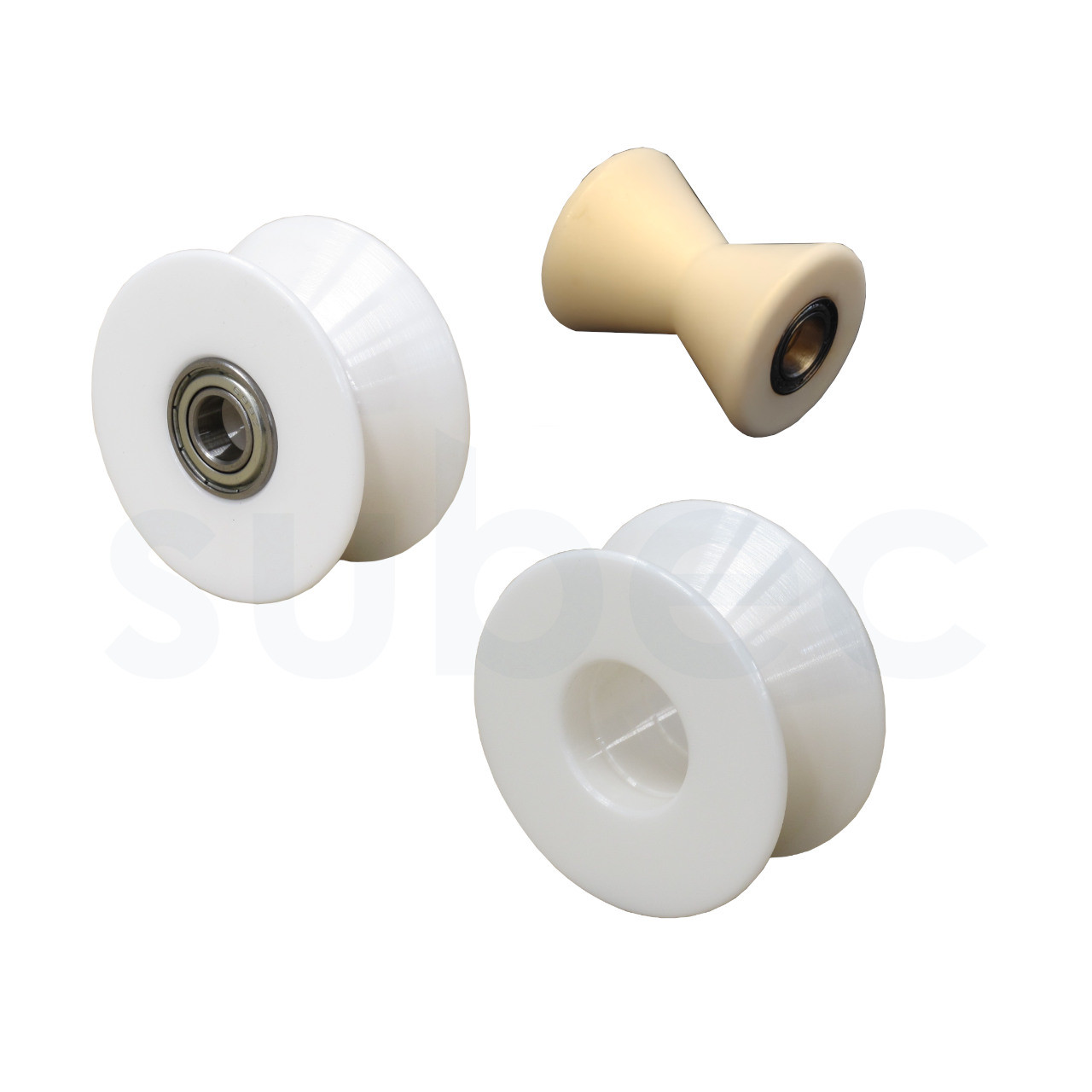

V-groove, for bearings

V-groove, for bearings

Drawing No: 1-400764-01

Description

Article. No	Diameter, Outer	Width	Diameter, Inner	Groove - Width	Groove - Depth	Groove - Radius	Groove - Angle	Material, Roller/Sheave	Surface Roughness
13438	22.00 mm	18.00 mm	11.00 mm	12.40 mm	5.50 mm	0.50 mm	90.00 °	Zirconium	1.00 Ra
11836	50.00 mm	24.00 mm	20.00 mm	20.80 mm	10.00 mm	1.00 mm	90.00 °	ZrO2D	0.20 Ra
11837	50.00 mm	24.00 mm	9.00 mm	20.80 mm	10.00 mm	1.00 mm	90.00 °	ZrO2D	0.20 Ra
16930	30.00 mm	19.00 mm	10.50 mm	15.00 mm	9.75 mm	3.60 mm	86.50 °	Al2O3 99,5%	0.20 Ra
10778B	35.00 mm	20.00 mm	24.00 mm	12.40 mm	6.20 mm	n/a mm	90.00 °	ZrO2D	0.20 Ra
5148	20.00 mm	25.00 mm	6.30 mm	25.00 mm	4.50 mm	1.00 mm	140.00 °	Al2O3 99,7%	0.90 Ra

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert

Article. No	13438
Diameter, Outer	22.00 mm
Width	18.00 mm
Diameter, Inner	11.00 mm
Groove - Width	12.40 mm
Groove - Depth	5.50 mm
Groove - Radius	0.50 mm

Article. No	11836
Diameter, Outer	50.00 mm
Width	24.00 mm
Diameter, Inner	20.00 mm
Groove - Width	20.80 mm
Groove - Depth	10.00 mm
Groove - Radius	1.00 mm

Article. No	11837
Diameter, Outer	50.00 mm
Width	24.00 mm
Diameter, Inner	9.00 mm
Groove - Width	20.80 mm
Groove - Depth	10.00 mm
Groove - Radius	1.00 mm

Article. No	16930
Diameter, Outer	30.00 mm
Width	19.00 mm
Diameter, Inner	10.50 mm
Groove - Width	15.00 mm
Groove - Depth	9.75 mm
Groove - Radius	3.60 mm

Article. No	10778B
Diameter, Outer	35.00 mm
Width	20.00 mm
Diameter, Inner	24.00 mm
Groove - Width	12.40 mm
Groove - Depth	6.20 mm
Groove - Radius	n/a mm

Article. No	5148
Diameter, Outer	20.00 mm
Width	25.00 mm
Diameter, Inner	6.30 mm
Groove - Width	25.00 mm
Groove - Depth	4.50 mm
Groove - Radius	1.00 mm
