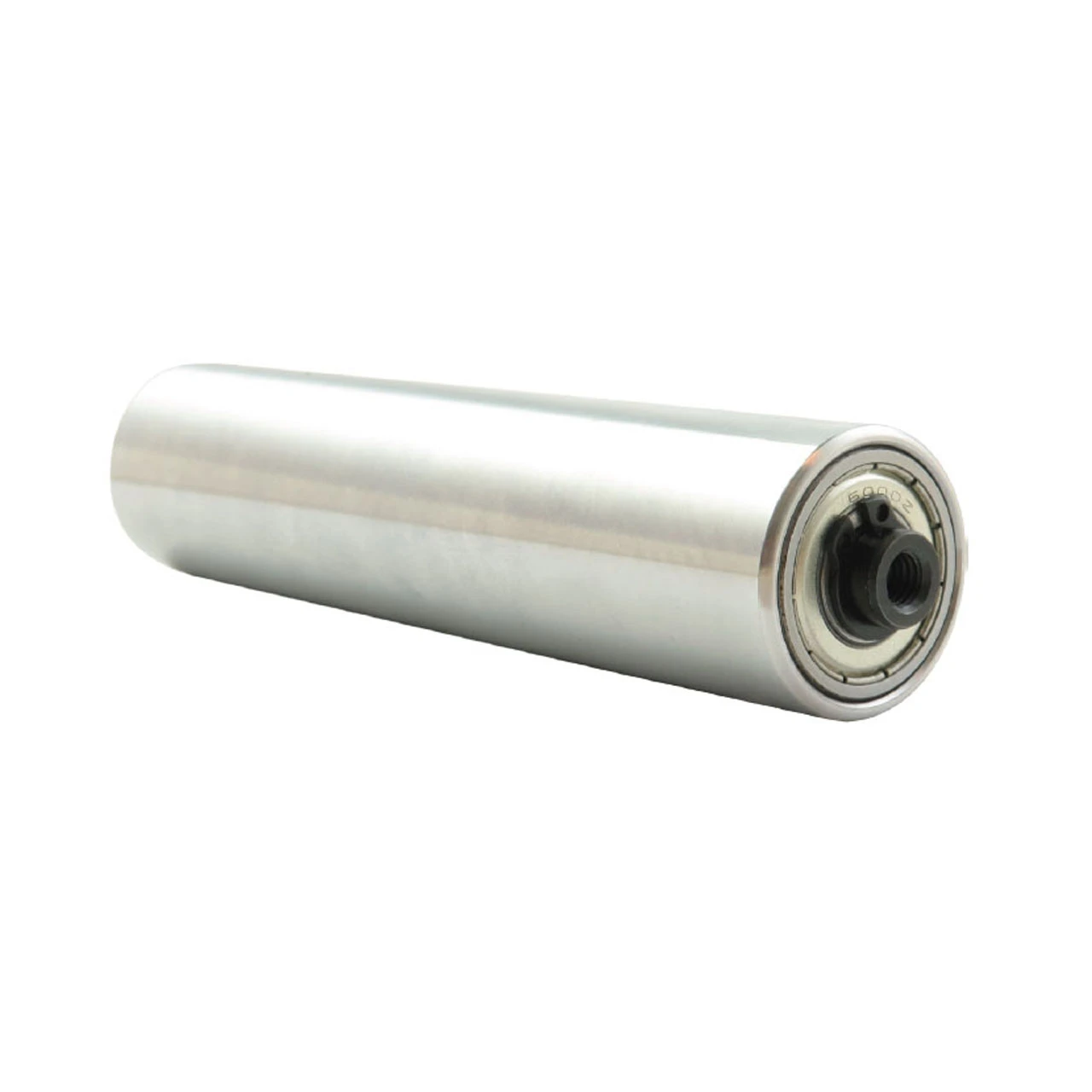

Double-ended internal-shaft

Double-ended internal-shaft

Drawing No: 3-400289-01

Description

These rollers are made from HRX material and feature two conical center holes or inner threads for axial fixation. Both bearings are symmetrically positioned at the very ends of the cylinder. They are available in various lengths, diameters, and internal thread configurations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height Suffix
22389 20.00 mm 125.00 mm HRX n/a 5 M 0.80 mm -10.00 mm Yes 5 M 0.80 mm -10.00 mm Yes 9.00 mm 2.50 mm n/a mm n/a mm n/a
1555 160.00 mm 340.00 mm HRX n/a 18 M 2.50 mm -20.00 mm Yes 18 M 2.50 mm -20.00 mm Yes 30.00 mm 5.00 mm n/a mm n/a mm n/a
2321 80.00 mm 469.00 mm HRX n/a 12 M 1.75 mm -20.00 mm Yes 12 M 1.75 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm n/a
2532 80.00 mm 385.00 mm HRX n/a 12 M 1.75 mm -20.00 mm Yes 12 M 1.75 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm n/a
3972 40.00 mm 900.00 mm HRX n/a 10 M 1.50 mm -15.00 mm Yes 10 M 1.50 mm -15.00 mm Yes 15.00 mm 5.00 mm n/a mm n/a mm n/a
11251 30.00 mm 130.00 mm HRX HRX 6 M 1.00 mm -10.00 mm Yes 6 M 1.00 mm -10.00 mm Yes 10.00 mm 5.00 mm n/a mm n/a mm n/a
20465 30.00 mm 130.00 mm HRX n/a 10 M 1.50 mm -10.00 mm Yes 10 M 1.50 mm -10.00 mm Yes n/a mm n/a mm n/a mm n/a mm
17642 80.00 mm 300.00 mm HRX n/a 12 M 1.75 mm -20.00 mm Yes 12 M 1.75 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm
14994 60.00 mm 210.00 mm HRX n/a 8 M 1.25 mm -20.00 mm Yes 8 M 1.25 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm n/a
12562 25.00 mm 275.00 mm HRX n/a 6 M 1.00 mm -10.00 mm Yes 6 M 1.00 mm -10.00 mm Yes 9.00 mm 2.50 mm n/a mm n/a mm n/a
8719 25.00 mm 60.00 mm HRX n/a n/a M n/a mm n/a mm No n/a M n/a mm n/a mm No 8.60 mm 3.50 mm n/a mm n/a mm
1553 80.00 mm 300.00 mm HRX n/a 14 M 2.00 mm -20.00 mm Yes 14 M 2.00 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.
