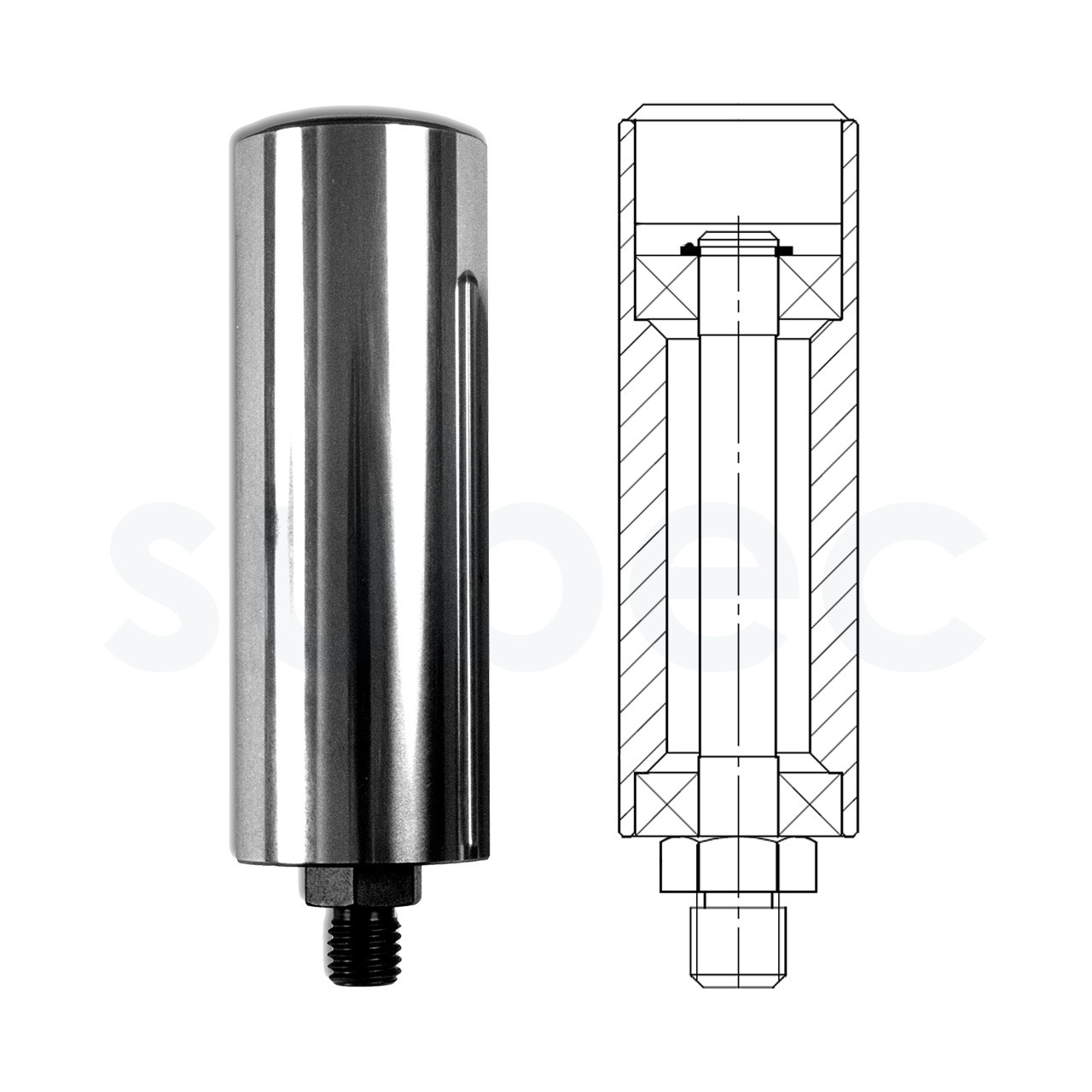

Standard one thread

Standard one thread

Drawing No: 3-400070-00

Description

Rollers in HRX material with one threaded shaft end. Comes in different lengths and diameters as well as with different thread designs.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height Suffix
1223 60.00 mm 140.00 mm HRX n/a 16 M 2.00 mm 30.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 22.00 mm 7.00 mm n/a
9932 80.00 mm 200.00 mm HRX n/a 20 M 2.50 mm 40.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 36.00 mm 16.00 mm n/a
0555 30.00 mm 60.00 mm HRX n/a 12 M 1.75 mm 12.00 mm n/a n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm n/a
0107 40.00 mm 110.00 mm PA6 n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm
0104 20.00 mm 40.00 mm HRX n/a 8 M 1.25 mm 10.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 14.00 mm 7.00 mm n/a
0028 60.00 mm 150.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm No 12.00 mm 12.00 mm 22.00 mm 9.00 mm
0027 60.00 mm 130.00 mm HRX n/a 12 M 1.75 mm 12.00 mm n/a n/a M n/a mm n/a mm n/a n/a mm n/a mm 22.00 mm 9.00 mm
0026 60.00 mm 110.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No 12 M 1.75 mm 12.00 mm No n/a mm n/a mm 22.00 mm 9.00 mm n/a
1256 30.00 mm 130.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 17.00 mm 7.00 mm n/a
1177 20.00 mm 180.00 mm HRX n/a 8 M 1.25 mm 20.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 14.00 mm 7.00 mm n/a
0791 20.00 mm 80.00 mm HRX Hard Chromium 8 M 1.25 mm 10.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 14.00 mm 7.00 mm n/a
0656 60.00 mm 220.00 mm HRX n/a 12 M 1.75 mm 30.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 19.00 mm 7.00 mm n/a
0631 20.00 mm 60.00 mm HRX n/a 8 M 1.25 mm 10.00 mm n/a n/a M n/a mm n/a mm n/a n/a mm n/a mm 14.00 mm 7.00 mm n/a
0607 20.00 mm 100.00 mm HRX n/a 10 M 1.50 mm 10.00 mm No n/a M n/a mm n/a mm n/a 10.00 mm 10.00 mm 14.00 mm 7.00 mm
1881 14.00 mm 60.00 mm Hardened Steel HRC 55 n/a 8 M 1.25 mm 10.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 10.00 mm 7.00 mm
1872 30.00 mm 40.00 mm HRX n/a 12 M 1.75 mm 12.00 mm n/a n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm n/a
1493 40.00 mm 60.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm
1425 40.00 mm 110.00 mm HRX n/a 12 M 1.75 mm 25.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm
1363 50.00 mm 80.00 mm HRX n/a 12 M 1.75 mm 24.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 19.00 mm 10.00 mm n/a
1259 30.00 mm 150.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 17.00 mm 7.00 mm
3554 20.00 mm 100.00 mm HRX n/a 10 M 20.00 mm 1.50 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 14.00 mm 7.00 mm
3407 50.00 mm 200.00 mm HRX n/a 12 M 1.75 mm 24.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 19.00 mm 10.00 mm
3121 40.00 mm 150.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm n/a
2766 25.00 mm 50.00 mm Hardened Steel HRC 55 n/a 10 M 1.50 mm 10.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm
2708 50.00 mm 50.00 mm HRX n/a 12 M 1.75 mm 24.00 mm No n/a M n/a mm n/a mm No 12.00 mm 24.00 mm 19.00 mm 10.00 mm n/a
2383 20.00 mm 60.00 mm Hardened Steel HRC 55 n/a 12 M 1.75 mm 10.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 14.00 mm 7.00 mm n/a
5680 16.00 mm 30.00 mm HRX n/a 6 M 1.00 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 10.00 mm 7.00 mm n/a
5389 40.00 mm 60.00 mm HRX n/a 12 M 1.75 mm 30.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 7.00 mm n/a
5272 60.00 mm 160.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 22.00 mm 9.00 mm
4685 60.00 mm 200.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 22.00 mm 9.00 mm
3556 30.00 mm 200.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm No 12.00 mm 12.00 mm 17.00 mm 7.00 mm
3555 20.00 mm 60.00 mm HRX n/a 8 M 1.25 mm 20.00 mm No n/a M n/a mm n/a mm No 8.00 mm 20.00 mm 14.00 mm 7.00 mm
7417 30.00 mm 90.00 mm HRX n/a 10 M 1.50 mm 30.00 mm No n/a M n/a mm n/a mm n/a 10.00 mm 30.00 mm 17.00 mm 7.00 mm n/a
7098 50.00 mm 100.00 mm HRX n/a 12 M 1.75 mm 25.50 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 24.00 mm 10.00 mm
7093 25.00 mm 100.00 mm HRX n/a 10 M 1.50 mm 20.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 17.00 mm 10.00 mm
6814 16.00 mm 80.00 mm HRX n/a 6 M 1.00 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 10.00 mm 7.00 mm n/a
6485 40.00 mm 80.00 mm HRX n/a 16 M 2.00 mm 24.00 mm No n/a M n/a mm n/a mm n/a 16.00 mm 24.00 mm 19.00 mm 10.00 mm
5905 40.00 mm 30.00 mm HRX n/a 12 M 1.75 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 22.00 mm 7.00 mm n/a
10188 20.00 mm 120.00 mm HRX n/a 8 M 1.25 mm 10.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 14.00 mm 7.00 mm n/a
8981 20.00 mm 50.00 mm HRX n/a 6 M 1.00 mm 12.00 mm No n/a M n/a mm n/a mm n/a 6.00 mm 12.00 mm 13.00 mm 6.00 mm
8860 40.00 mm 130.00 mm HRX n/a 12 M 1.75 mm 24.00 mm n/a n/a M n/a mm n/a mm n/a n/a mm n/a mm 19.00 mm 10.00 mm
8859 60.00 mm 130.00 mm HRX n/a 16 M 2.00 mm 32.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 30.00 mm 13.00 mm
8024 40.00 mm 80.00 mm HRX n/a 12 M 1.75 mm 24.00 mm No n/a M n/a mm n/a mm No 12.00 mm 24.00 mm 19.00 mm 10.00 mm
7925 20.00 mm 100.00 mm HRX n/a 8 M 1.25 mm 20.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 14.00 mm 7.00 mm n/a
21237 50.00 mm 160.00 mm HRX n/a 20 M 2.50 mm 25.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 30.00 mm 23.00 mm n/a
3893A 30.00 mm 90.00 mm HRX n/a 12 M 1.75 mm 25.00 mm No n/a M n/a mm n/a mm No 12.00 mm 25.00 mm 17.00 mm 7.00 mm
7346A 25.00 mm 40.00 mm HRX Hard Chromium 8 M 10.00 mm 10.00 mm n/a n/a M n/a mm n/a mm n/a n/a mm n/a mm 14.00 mm 7.00 mm n/a
0699A 20.00 mm 80.00 mm HRX n/a 8 M 1.25 mm 20.00 mm No n/a M n/a mm n/a mm No 8.00 mm 20.00 mm 14.00 mm 7.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 1223
Diameter, Outer 60.00 mm
Length 140.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 16 M
Thread 1 pitch 2.00 mm
Article. No 9932
Diameter, Outer 80.00 mm
Length 200.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 20 M
Thread 1 pitch 2.50 mm
Article. No 0555
Diameter, Outer 30.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 0107
Diameter, Outer 40.00 mm
Length 110.00 mm
Material, Roller/Sheave PA6
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 0104
Diameter, Outer 20.00 mm
Length 40.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 0028
Diameter, Outer 60.00 mm
Length 150.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 0027
Diameter, Outer 60.00 mm
Length 130.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 0026
Diameter, Outer 60.00 mm
Length 110.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1256
Diameter, Outer 30.00 mm
Length 130.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1177
Diameter, Outer 20.00 mm
Length 180.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 0791
Diameter, Outer 20.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating Hard Chromium
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 0656
Diameter, Outer 60.00 mm
Length 220.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 0631
Diameter, Outer 20.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 0607
Diameter, Outer 20.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 1881
Diameter, Outer 14.00 mm
Length 60.00 mm
Material, Roller/Sheave Hardened Steel HRC 55
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 1872
Diameter, Outer 30.00 mm
Length 40.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1493
Diameter, Outer 40.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1425
Diameter, Outer 40.00 mm
Length 110.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1363
Diameter, Outer 50.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1259
Diameter, Outer 30.00 mm
Length 150.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 3554
Diameter, Outer 20.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 20.00 mm
Article. No 3407
Diameter, Outer 50.00 mm
Length 200.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 3121
Diameter, Outer 40.00 mm
Length 150.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 2766
Diameter, Outer 25.00 mm
Length 50.00 mm
Material, Roller/Sheave Hardened Steel HRC 55
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 2708
Diameter, Outer 50.00 mm
Length 50.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 2383
Diameter, Outer 20.00 mm
Length 60.00 mm
Material, Roller/Sheave Hardened Steel HRC 55
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 5680
Diameter, Outer 16.00 mm
Length 30.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 6 M
Thread 1 pitch 1.00 mm
Article. No 5389
Diameter, Outer 40.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 5272
Diameter, Outer 60.00 mm
Length 160.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 4685
Diameter, Outer 60.00 mm
Length 200.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 3556
Diameter, Outer 30.00 mm
Length 200.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 3555
Diameter, Outer 20.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 7417
Diameter, Outer 30.00 mm
Length 90.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 7098
Diameter, Outer 50.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 7093
Diameter, Outer 25.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 6814
Diameter, Outer 16.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 6 M
Thread 1 pitch 1.00 mm
Article. No 6485
Diameter, Outer 40.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 16 M
Thread 1 pitch 2.00 mm
Article. No 5905
Diameter, Outer 40.00 mm
Length 30.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 10188
Diameter, Outer 20.00 mm
Length 120.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 8981
Diameter, Outer 20.00 mm
Length 50.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 6 M
Thread 1 pitch 1.00 mm
Article. No 8860
Diameter, Outer 40.00 mm
Length 130.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 8859
Diameter, Outer 60.00 mm
Length 130.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 16 M
Thread 1 pitch 2.00 mm
Article. No 8024
Diameter, Outer 40.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 7925
Diameter, Outer 20.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 21237
Diameter, Outer 50.00 mm
Length 160.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 20 M
Thread 1 pitch 2.50 mm
Article. No 3893A
Diameter, Outer 30.00 mm
Length 90.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 7346A
Diameter, Outer 25.00 mm
Length 40.00 mm
Material, Roller/Sheave HRX
Coating Hard Chromium
Thread 1 8 M
Thread 1 pitch 10.00 mm
Article. No 0699A
Diameter, Outer 20.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
!
