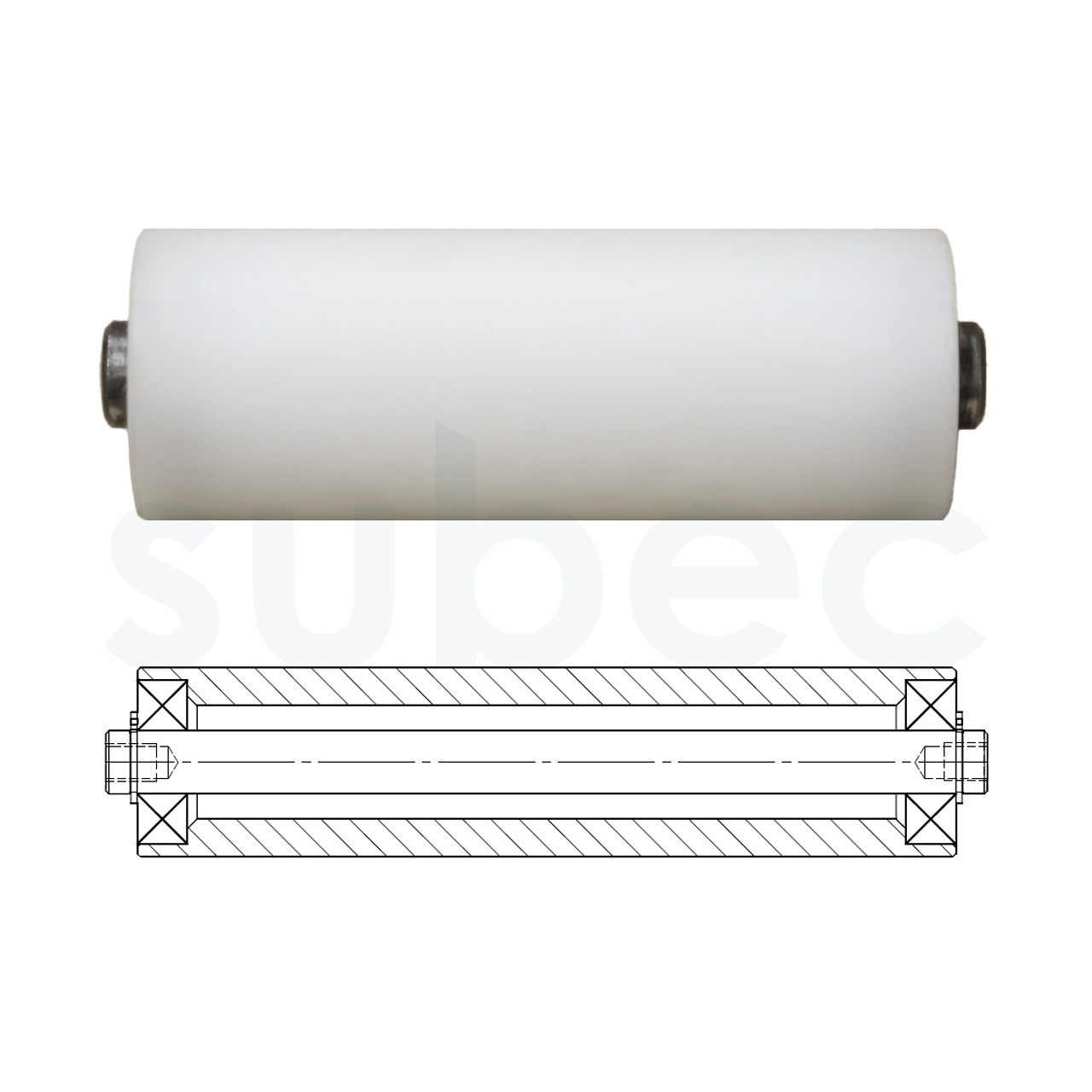

Double-ended internal-shaft, Plastic

Double-ended internal-shaft, Plastic

Drawing No: 3-400289-01 Sym

Description

Rollers made in plastic material with two conical center holes or inner threads for axial fixation. Both bearings are symmetrically positioned at the very ends of the cylinder. They are available in various materials, lengths, diameters, and internal thread configurations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Thread 1 Thread 1 length Thread 2 Thread 2 length
21770 40.00 mm 260.00 mm 10 M 20.00 mm 10 M 20.00 mm
21771 40.00 mm 110.00 mm 10 M 20.00 mm 10 M 20.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21770
Diameter, Outer 40.00 mm
Length 260.00 mm
Thread 1 10 M
Thread 1 length 20.00 mm
Thread 2 10 M
Thread 2 length 20.00 mm
Article. No 21771
Diameter, Outer 40.00 mm
Length 110.00 mm
Thread 1 10 M
Thread 1 length 20.00 mm
Thread 2 10 M
Thread 2 length 20.00 mm
!
