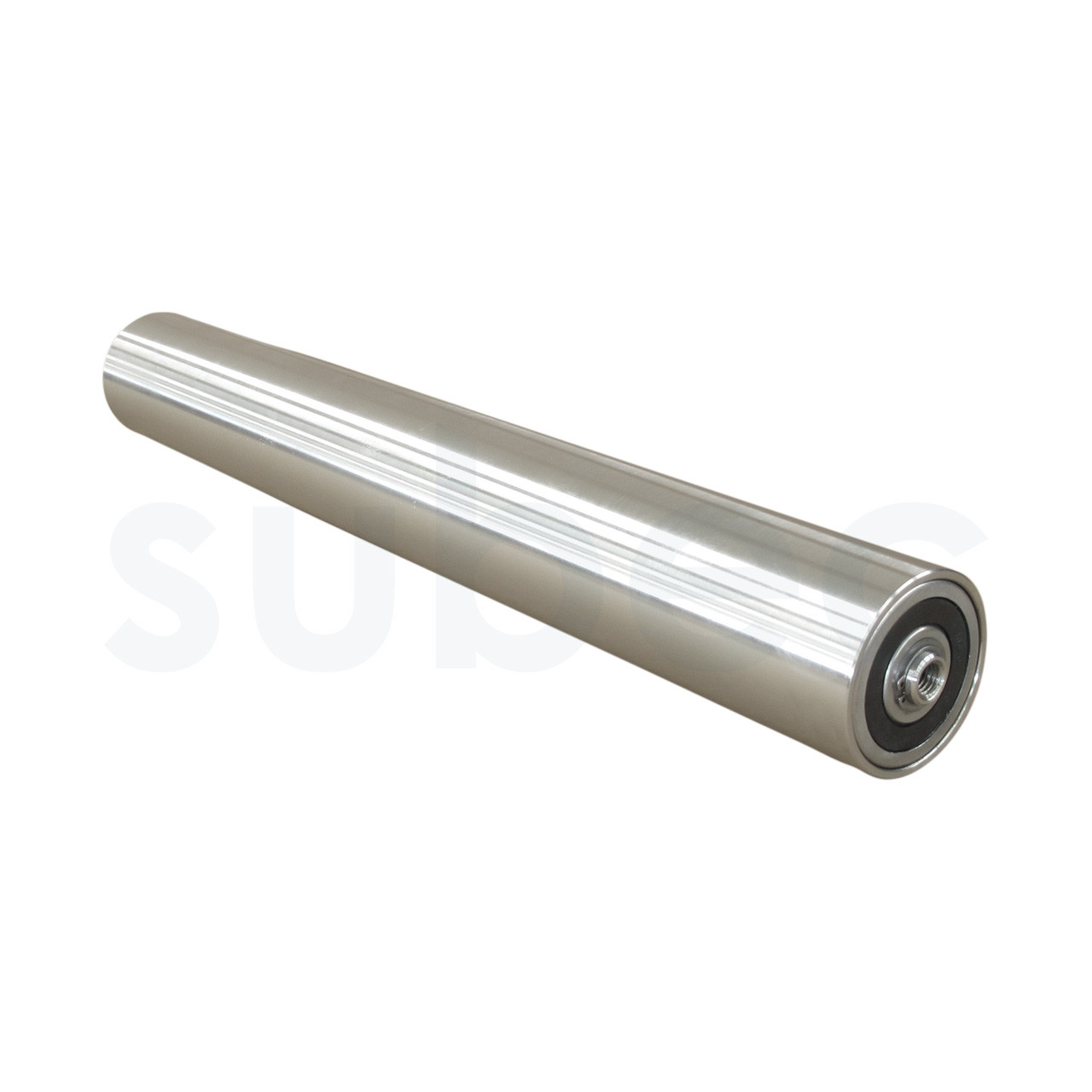

Double-ended internal-shaft, Stainless

Double-ended internal-shaft, Stainless

Drawing No: 3-400289-04

Description

Rollers in Stainless material with two conical center holes or inner threads for axial fixation. Both bearings are symmetrically positioned at the very ends of the cylinder. They are available in various lengths, diameters, materials, and internal thread configurations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Thread 1 Thread 1 length Thread 2 Thread 2 length
18509 160.00 mm 340.00 mm 18 M -20.00 mm 18 M -20.00 mm
20452 30.00 mm 130.00 mm 6 M -10.00 mm 6 M -10.00 mm
20479 80.00 mm 600.00 mm 14 M -20.00 mm 14 M -20.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 18509
Diameter, Outer 160.00 mm
Length 340.00 mm
Thread 1 18 M
Thread 1 length -20.00 mm
Thread 2 18 M
Thread 2 length -20.00 mm
Article. No 20452
Diameter, Outer 30.00 mm
Length 130.00 mm
Thread 1 6 M
Thread 1 length -10.00 mm
Thread 2 6 M
Thread 2 length -10.00 mm
Article. No 20479
Diameter, Outer 80.00 mm
Length 600.00 mm
Thread 1 14 M
Thread 1 length -20.00 mm
Thread 2 14 M
Thread 2 length -20.00 mm
!
