Aluminium Sheaves – Various Configurations

Aluminium Sheaves – Various Configurations

Drawing No: 3-401316-00

Description

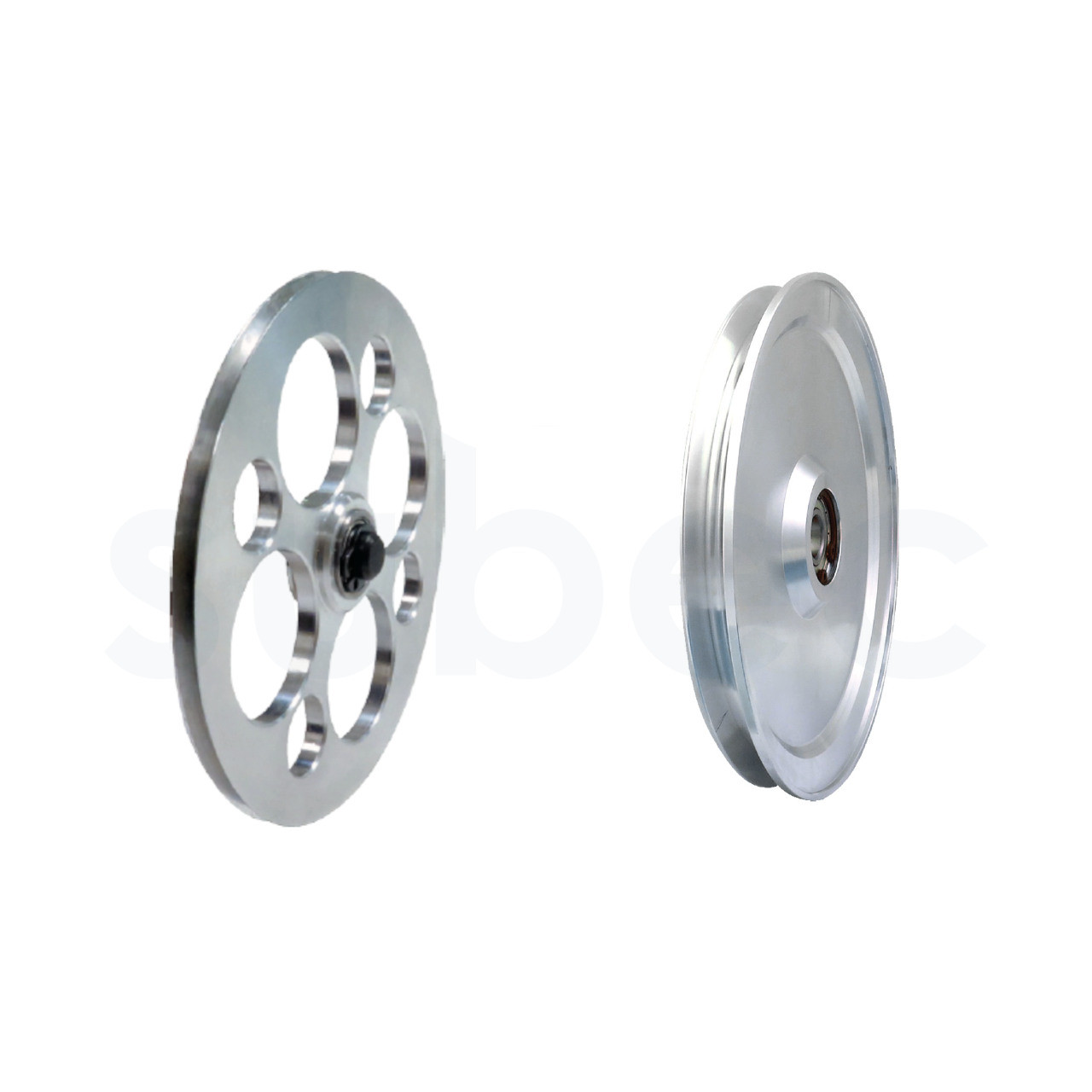

Subec’s sheaves are available in a wide range of diameters and configurations, including weight-reduction holes and nested designs, with various groove profiles and surface treatments, including hard anodizing or ceramic and tungsten carbide coating, depending on the application requirements.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Coating Diameter, Root Diameter, Outer Width Groove - Quantity Groove - Width Groove - Radius Groove - Depth Groove - Angle Bearing Seat Diameter Bearing Seat Depth Nested Product Range - MIN Product Range - MAX Suffix
12171 Aluminium n/a 60.00 mm 68.00 mm 3.00 mm 1 2.52 mm n/a mm 8.00 mm 35.00 ° 10.00 mm 6.00 mm No 1.00 mm 2.50 mm -
12170 Aluminium n/a 60.00 mm 60.00 mm 3.00 mm 1 2.52 mm 0.00 mm 8.00 mm 35.00 ° 10.00 mm 6.00 mm No 1.00 mm 2.50 mm -
14945 Aluminium Tungsten 60.00 mm 68.00 mm 7.00 mm 1 6.00 mm 0.20 mm 8.00 mm 73.74 ° 10.00 mm 6.00 mm No 1.00 mm 6.00 mm -
14775 Aluminium Hard Anodizing 90.00 mm 97.00 mm 10.00 mm 1 4.30 mm 0.50 mm 7.00 mm 65.00 ° 10.00 mm 3.00 mm Yes 1.00 mm 6.00 mm -

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 12171
Material, Roller/Sheave Aluminium
Coating n/a
Diameter, Root 60.00 mm
Diameter, Outer 68.00 mm
Width 3.00 mm
Groove - Quantity 1
Article. No 12170
Material, Roller/Sheave Aluminium
Coating n/a
Diameter, Root 60.00 mm
Diameter, Outer 60.00 mm
Width 3.00 mm
Groove - Quantity 1
Article. No 14945
Material, Roller/Sheave Aluminium
Coating Tungsten
Diameter, Root 60.00 mm
Diameter, Outer 68.00 mm
Width 7.00 mm
Groove - Quantity 1
Article. No 14775
Material, Roller/Sheave Aluminium
Coating Hard Anodizing
Diameter, Root 90.00 mm
Diameter, Outer 97.00 mm
Width 10.00 mm
Groove - Quantity 1
!
