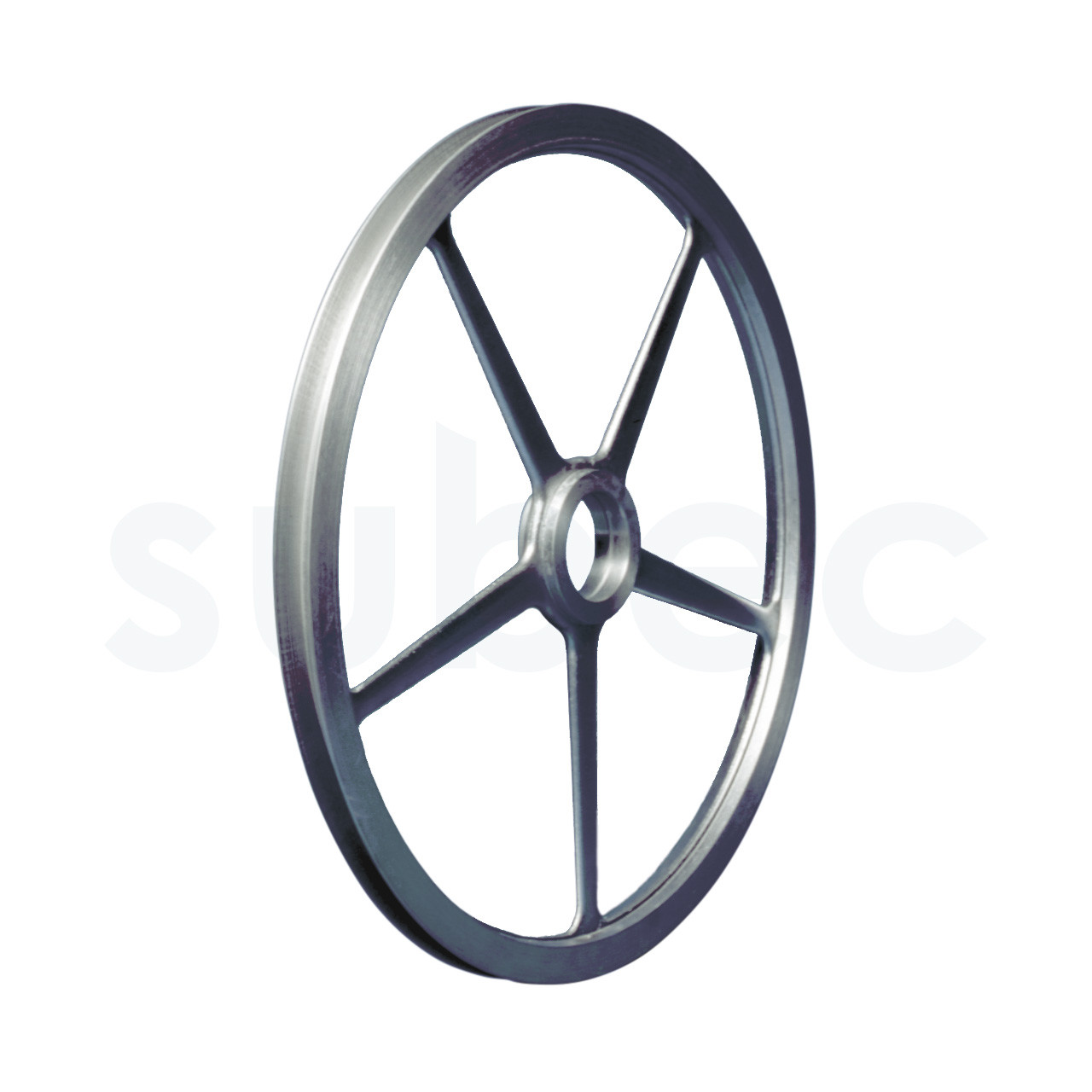

Casted Aluminium sheaves with spokes

Casted Aluminium sheaves with spokes

Drawing No: 3-400312-00

Description

Casted Aluminium sheaves with various groove profiles, with or without overlap and various surface treatments. Various groove widths and diameters Ø500-Ø600mm.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Width Groove - Width Groove - Radius Groove - Depth Groove - Angle Bearing Seat Diameter Bearing Seat Depth Nested Product Range - MIN Product Range - MAX Suffix
21814 Aluminium 600.00 mm 640.00 mm 24.50 mm 12.00 mm 6.00 mm 20.00 mm 6.00 ° 68.00 mm 8.85 mm Yes 5.00 mm 12.00 mm n/a
0080A Aluminium 500.00 mm 540.00 mm 24.50 mm 15.00 mm n/a mm 16.00 mm 4.00 ° 68.00 mm 8.85 mm Yes n/a mm 15.00 mm n/a
7490 Aluminium 600.00 mm 640.00 mm 24.50 mm 15.00 mm n/a mm 16.00 mm 4.00 ° 68.00 mm 52.35 mm Yes 0.00 mm 15.00 mm Overlap
7358 Aluminium 500.00 mm 540.00 mm 24.50 mm 15.00 mm n/a mm 16.00 mm 4.00 ° 68.00 mm 8.93 mm Yes n/a mm 15.00 mm Suitable_for_Bearings_16008
7332 Aluminium 600.00 mm 640.00 mm 24.50 mm 15.00 mm 7.50 mm 20.00 mm 6.00 ° 68.00 mm 9.00 mm Yes 0.00 mm 15.00 mm Overlap

No products matches the diameter range

Reach out to us for other dimensions on request.
