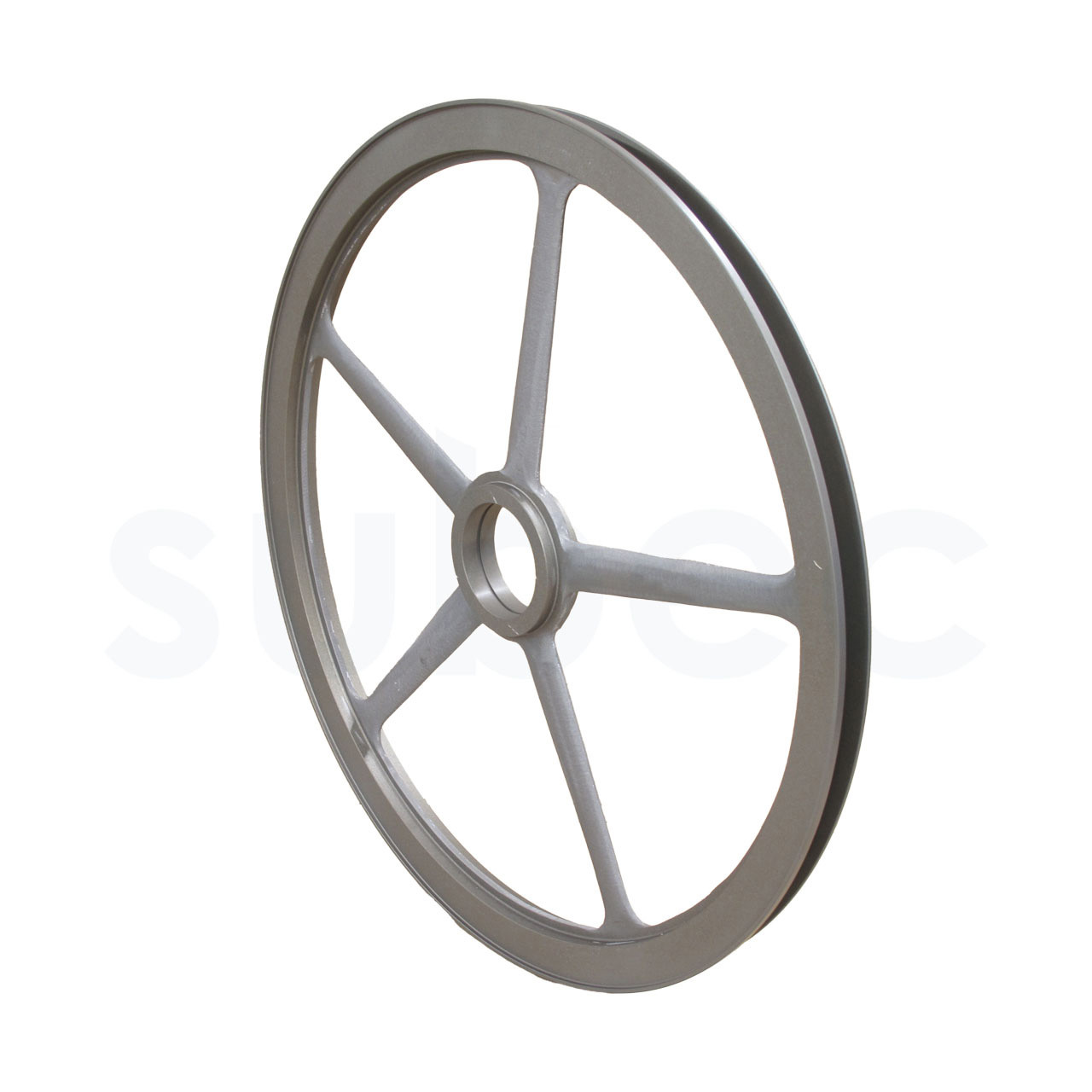

Casted Aluminium sheaves, Groove 20mm

Casted Aluminium sheaves, Groove 20mm

Drawing No: 3-400337-00

Description

Casted Aluminium sheaves with various groove profiles, with or without overlap and various surface treatments. Groove width 20mm

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Coating Diameter, Root Diameter, Outer Width Groove - Width Groove - Radius Groove - Depth Groove - Angle Bearing Seat Diameter Bearing Seat Depth Nested Product Range - MIN Product Range - MAX Suffix
3366A Aluminium Hard Anodizing 600.00 mm 648.00 mm 30.00 mm 20.00 mm n/a mm 20.00 mm 4.00 ° 68.00 mm 10.60 mm Yes n/a mm 20.00 mm n/a
0082A Aluminium Hard Anodizing 500.00 mm 548.00 mm 30.00 mm 20.00 mm n/a mm 20.00 mm 4.00 ° 68.00 mm 10.60 mm Yes n/a mm 20.00 mm n/a
9074 Aluminium Hard Anodizing 50.00 mm 548.00 mm 30.00 mm 20.00 mm n/a mm 20.00 mm 4.00 ° 72.00 mm 14.58 mm Yes 0.00 mm 20.00 mm n/a
6843 Aluminium Hard Anodizing 500.00 mm 548.00 mm 30.00 mm 20.00 mm 10.00 mm 20.00 mm 4.00 ° 68.00 mm 14.58 mm Yes 0.00 mm 10.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 3366A
Material, Roller/Sheave Aluminium
Coating Hard Anodizing
Diameter, Root 600.00 mm
Diameter, Outer 648.00 mm
Width 30.00 mm
Groove - Width 20.00 mm
Article. No 0082A
Material, Roller/Sheave Aluminium
Coating Hard Anodizing
Diameter, Root 500.00 mm
Diameter, Outer 548.00 mm
Width 30.00 mm
Groove - Width 20.00 mm
Article. No 9074
Material, Roller/Sheave Aluminium
Coating Hard Anodizing
Diameter, Root 50.00 mm
Diameter, Outer 548.00 mm
Width 30.00 mm
Groove - Width 20.00 mm
Article. No 6843
Material, Roller/Sheave Aluminium
Coating Hard Anodizing
Diameter, Root 500.00 mm
Diameter, Outer 548.00 mm
Width 30.00 mm
Groove - Width 20.00 mm
!
