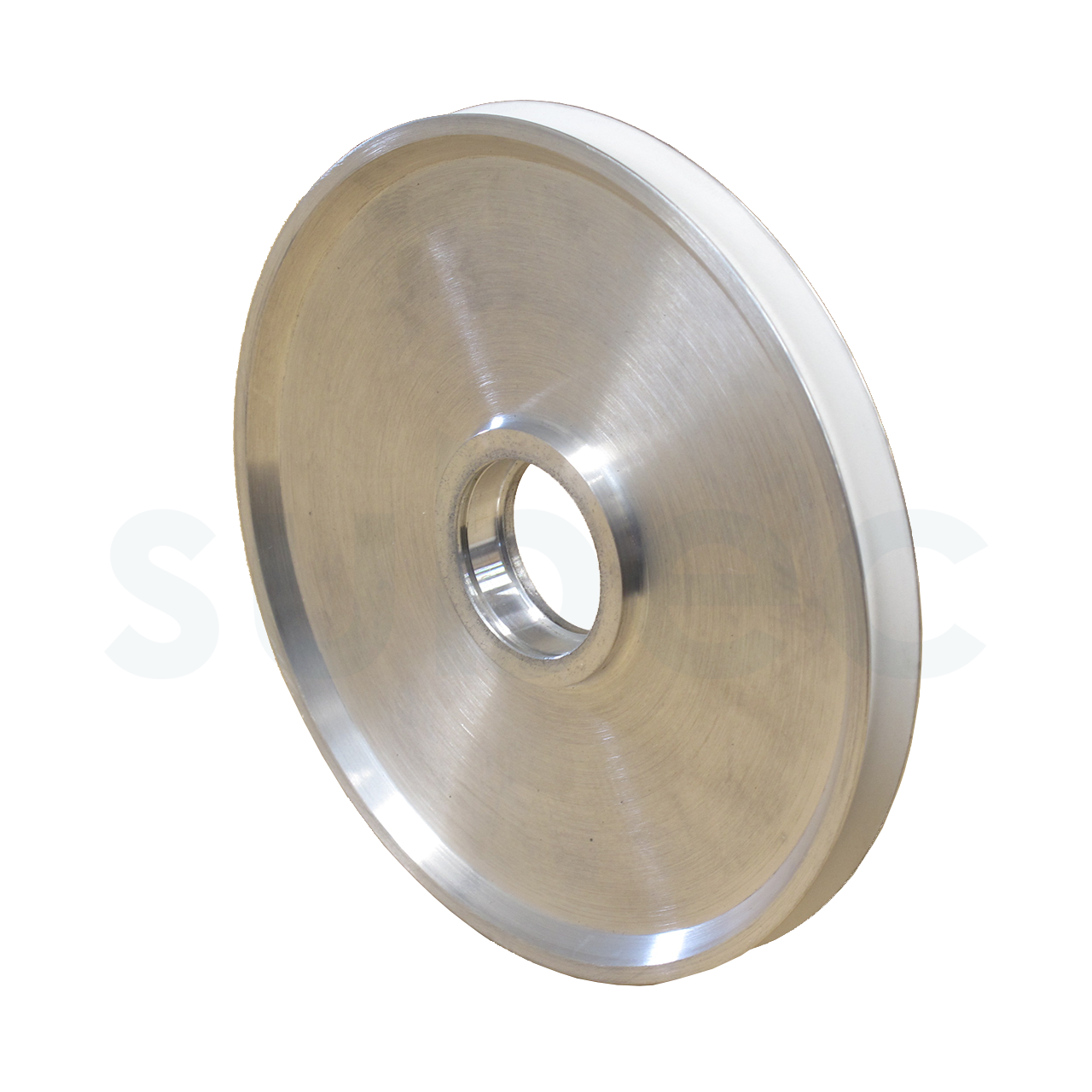

Ceramic Coated Groove, White

Ceramic Coated Groove, White

Drawing No: 3-400936-01

Description

Durable aluminium wheel featuring varius groove profiles. The groove is coated with a white aluminium oxide ceramic layer that significantly increases wear resistance, making it ideal for demanding applications. The white color greatly helps reveal when the groove is dirty and might need cleaning.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Coating Diameter, Root Diameter, Outer Width Groove - Quantity Groove - Width Groove - Radius Groove - Depth Groove - Angle Bearing Seat Diameter Bearing Seat Depth Nested Product Range - MIN Product Range - MAX Suffix
21193 Aluminium AW 6082-T6 Al2O3 142.00 mm 159.00 mm 12.00 mm 9.00 mm 1.00 mm 8.50 mm 54.00 ° 32.00 mm 7.00 mm No 1.00 mm 9.00 mm n/a
21190 Aluminium AW 6082-T6 Al2O3 100.00 mm 120.00 mm 13.00 mm 10.00 mm 1.00 mm 10.00 mm 52.00 ° 32.00 mm 9.00 mm No 1.00 mm 10.00 mm n/a
21332 Aluminium AW 6082-T6 Al2O3 185.00 mm 195.00 mm 21.00 mm 10.00 mm 1.00 mm 5.00 mm 90.00 ° 62.00 mm 14.00 mm No 0.00 mm 10.00 mm n/a
21331 Aluminium AW 6082-T6 Al2O3 146.00 mm 159.00 mm 13.00 mm 10.00 mm 1.00 mm 3.50 mm 90.00 ° 32.00 mm 7.00 mm Yes 0.00 mm 7.00 mm n/a
21329 Aluminium AW 6082-T6 Al2O3 146.00 mm 159.00 mm 13.00 mm 10.00 mm 1.00 mm 6.50 mm 75.00 ° 32.00 mm 7.00 mm Yes 0.00 mm 10.00 mm n/a
21328 Aluminium AW 6082-T6 Al2O3 132.00 mm 138.00 mm 20.00 mm 9.00 mm 1.00 mm 3.00 mm 112.00 ° 32.00 mm 9.35 mm No 0.00 mm 9.00 mm n/a
21327 Aluminium AW 6082-T6 Al2O3 112.00 mm 118.00 mm 20.00 mm 9.00 mm 1.00 mm 3.00 mm 112.00 ° 32.00 mm 9.35 mm No 0.00 mm 9.00 mm n/a
21326 Aluminium AW 6082-T6 Al2O3 105.00 mm 125.00 mm 20.00 mm 10.00 mm 1.00 mm 10.00 mm 47.00 ° 32.00 mm 9.35 mm No 0.00 mm 10.00 mm n/a
21325 Aluminium AW 6082-T6 Al2O3 82.00 mm 90.00 mm 20.00 mm 10.00 mm 1.00 mm 4.00 mm 105.00 ° 32.00 mm 9.35 mm No 0.00 mm 10.00 mm n/a
21324 Aluminium AW 6082-T6 Al2O3 150.00 mm 159.00 mm 12.00 mm 10.00 mm 1.00 mm 4.50 mm 90.00 ° 32.00 mm 7.00 mm No 0.00 mm 10.00 mm n/a
21323 Aluminium AW 6082-T6 Al2O3 131.00 mm 140.00 mm 12.00 mm 10.00 mm 1.00 mm 4.50 mm 90.00 ° 32.00 mm 7.00 mm No 0.00 mm 10.00 mm n/a
21322 Aluminium AW 6082-T6 n/a 100.00 mm 117.00 mm 13.00 mm 10.00 mm 1.00 mm 8.50 mm 53.00 ° 30.00 mm 9.00 mm No 0.00 mm 10.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21193
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 142.00 mm
Diameter, Outer 159.00 mm
Width 12.00 mm
Groove - Quantity
Article. No 21190
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 100.00 mm
Diameter, Outer 120.00 mm
Width 13.00 mm
Groove - Quantity
Article. No 21332
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 185.00 mm
Diameter, Outer 195.00 mm
Width 21.00 mm
Groove - Quantity
Article. No 21331
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 146.00 mm
Diameter, Outer 159.00 mm
Width 13.00 mm
Groove - Quantity
Article. No 21329
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 146.00 mm
Diameter, Outer 159.00 mm
Width 13.00 mm
Groove - Quantity
Article. No 21328
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 132.00 mm
Diameter, Outer 138.00 mm
Width 20.00 mm
Groove - Quantity
Article. No 21327
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 112.00 mm
Diameter, Outer 118.00 mm
Width 20.00 mm
Groove - Quantity
Article. No 21326
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 105.00 mm
Diameter, Outer 125.00 mm
Width 20.00 mm
Groove - Quantity
Article. No 21325
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 82.00 mm
Diameter, Outer 90.00 mm
Width 20.00 mm
Groove - Quantity
Article. No 21324
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 150.00 mm
Diameter, Outer 159.00 mm
Width 12.00 mm
Groove - Quantity
Article. No 21323
Material, Roller/Sheave Aluminium AW 6082-T6
Coating Al2O3
Diameter, Root 131.00 mm
Diameter, Outer 140.00 mm
Width 12.00 mm
Groove - Quantity
Article. No 21322
Material, Roller/Sheave Aluminium AW 6082-T6
Coating n/a
Diameter, Root 100.00 mm
Diameter, Outer 117.00 mm
Width 13.00 mm
Groove - Quantity
!
