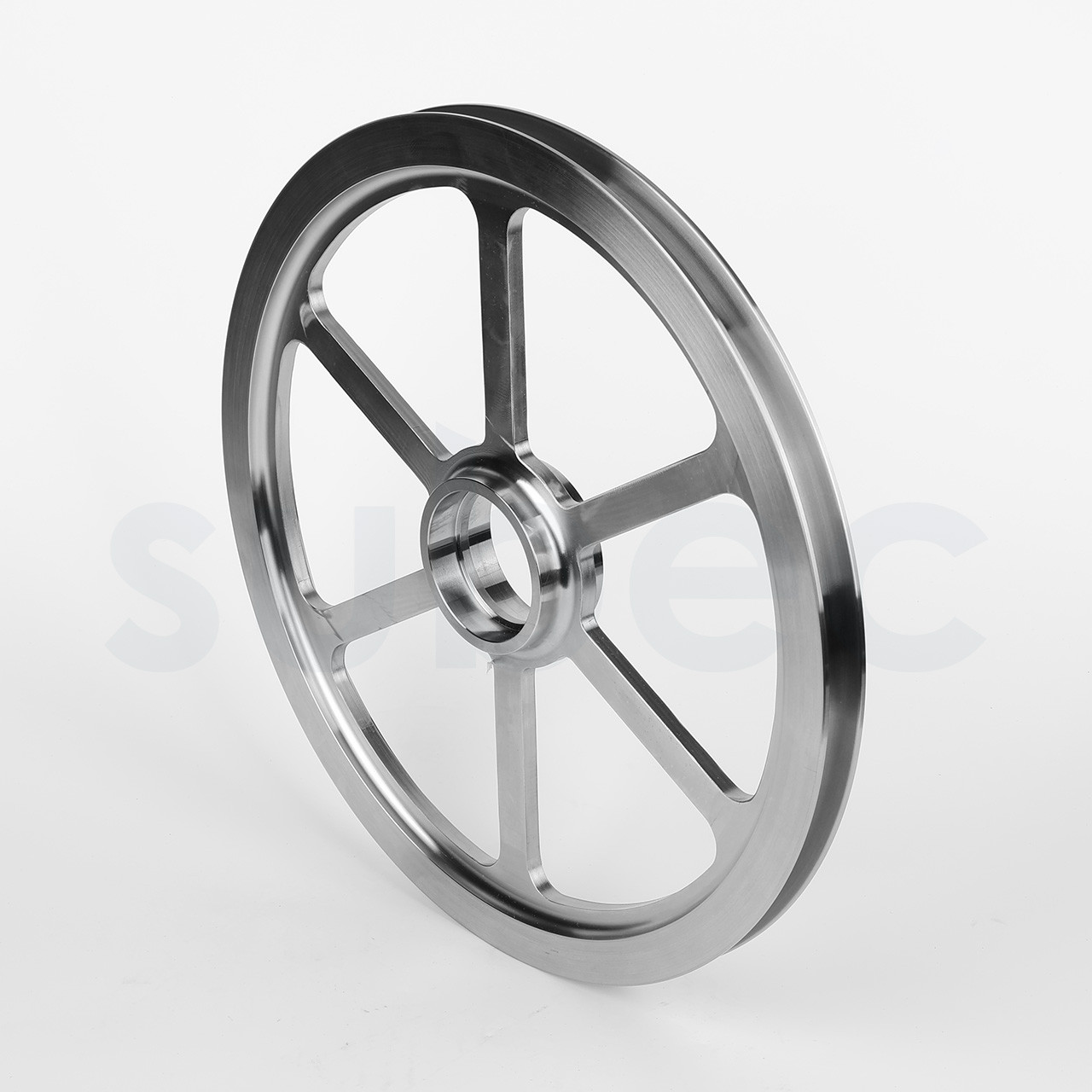

Stainless steel sheaves with spokes

Stainless steel sheaves with spokes

Drawing No: 1-400944-00

Description

Precision-machined stainless steel sheaves with a spoked design, available in various diameters and groove profiles. Their excellent corrosion resistance makes them particularly suitable for wet and demanding environments. Available with or without bearings.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Coating Diameter, Root Diameter, Outer Width Groove - Quantity Groove - Width Groove - Radius Groove - Depth Groove - Angle Bearing Seat Diameter Bearing Seat Depth Nested Product Range - MIN Product Range - MAX Suffix
21857P1 SS (AISI 304) n/a 290.00 mm 318.00 mm 30.00 mm 1 14.00 mm 7.00 mm 14.00 mm n/a ° 55.00 mm 13.00 mm No 1.00 mm 14.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21857P1
Material, Roller/Sheave SS (AISI 304)
Coating n/a
Diameter, Root 290.00 mm
Diameter, Outer 318.00 mm
Width 30.00 mm
Groove - Quantity 1
!
