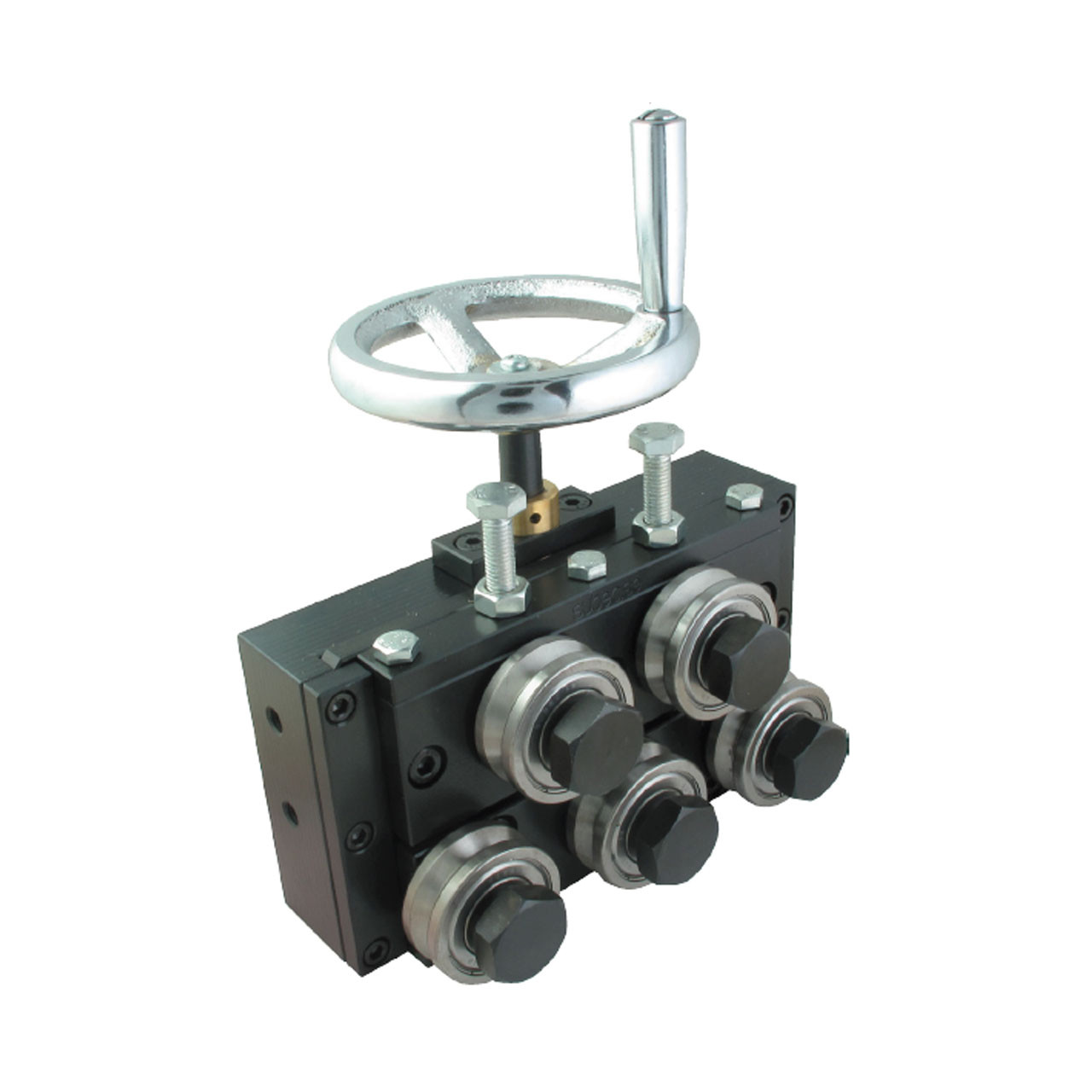

Wire Straightener S40-52 in HWSY-Series

Wire Straightener S40-52 in HWSY-Series

Drawing No: 3-400550-00

Description

This group of straighteners includes models equipped with rollers ranging from 40 to 52 mm in diameter. The number of rollers per single straightener ranges from 5 to 13. The typical product diameter range is 3.0–9.5 mm.

Dimensions

  • Hide Filters
Article. No Plane (X or XY) Diameter, Outer Rollers - Qty Roller Type Product Range - MIN Product Range - MAX
10644 Single 40.00 mm 7 SD 3.00 mm 5.00 mm
6260A Single 52.00 mm 5 SD 6.00 mm 9.50 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 10644
Plane (X or XY) Single
Diameter, Outer 40.00 mm
Rollers - Qty 7
Roller Type SD
Product Range - MIN 3.00 mm
Product Range - MAX 5.00 mm
Article. No 6260A
Plane (X or XY) Single
Diameter, Outer 52.00 mm
Rollers - Qty 5
Roller Type SD
Product Range - MIN 6.00 mm
Product Range - MAX 9.50 mm
!
