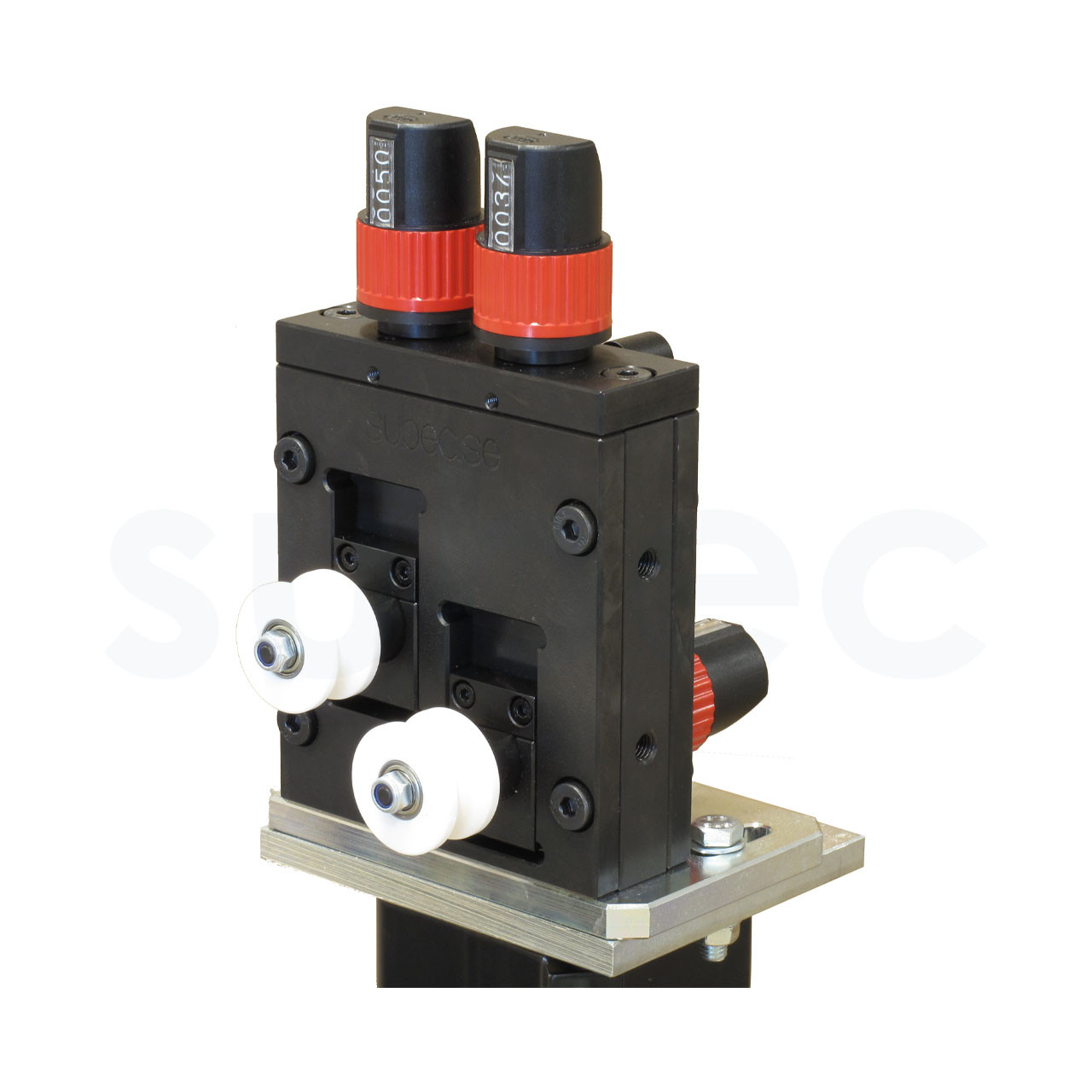

PGU with Ø22-40 Rollers

PGU with Ø22-40 Rollers

Drawing No: 3-400793-00

Description

This drawing category includes Precision Guide Units (PGUs) equipped with rollers of outer diameter 22-35 mm, defining the common mechanical interface and geometry for this series. Rollers are available in multiple material and design configurations, including yttria-stabilized zirconia (ZrO₂–Y₂O₃), bearing-type hardened steel grooved rollers and sleeve design rollers with integrated bearings housed within the roller body. All rollers are manufactured with application-specific groove geometries to match the intended wire or product profile. The category includes PGU variants both with and without position indicators, allowing for either basic adjustment or repeatable, precision setting of the guiding axes.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Material, Roller/Sheave Groove - Width Direction Product Range - MIN Product Range - MAX Position Indicator Centerline side adj. +/- Suffix
12145C 40.00 mm HRC55 10.00 mm Left to Right 1.00 mm 10.00 mm YES 4.00 mm n/a
10784B 35.00 mm Zirconium 12.40 mm Right to Left 1.00 mm 12.00 mm n/a 4.00 mm n/a
21723 22.00 mm Zirconium 12.40 mm Right to Left 0.60 mm 28.00 mm No 4.00 mm n/a
18720 35.00 mm Zirconium 12.40 mm Left to Right 1.00 mm 12.00 mm YES 4.00 mm n/a
13834A 35.00 mm Zirconium 12.40 mm Right to Left 1.00 mm 12.00 mm YES 4.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 12145C
Diameter, Outer 40.00 mm
Material, Roller/Sheave HRC55
Groove - Width 10.00 mm
Direction Left to Right
Product Range - MIN 1.00 mm
Product Range - MAX 10.00 mm
Article. No 10784B
Diameter, Outer 35.00 mm
Material, Roller/Sheave Zirconium
Groove - Width 12.40 mm
Direction Right to Left
Product Range - MIN 1.00 mm
Product Range - MAX 12.00 mm
Article. No 21723
Diameter, Outer 22.00 mm
Material, Roller/Sheave Zirconium
Groove - Width 12.40 mm
Direction Right to Left
Product Range - MIN 0.60 mm
Product Range - MAX 28.00 mm
Article. No 18720
Diameter, Outer 35.00 mm
Material, Roller/Sheave Zirconium
Groove - Width 12.40 mm
Direction Left to Right
Product Range - MIN 1.00 mm
Product Range - MAX 12.00 mm
Article. No 13834A
Diameter, Outer 35.00 mm
Material, Roller/Sheave Zirconium
Groove - Width 12.40 mm
Direction Right to Left
Product Range - MIN 1.00 mm
Product Range - MAX 12.00 mm
!
